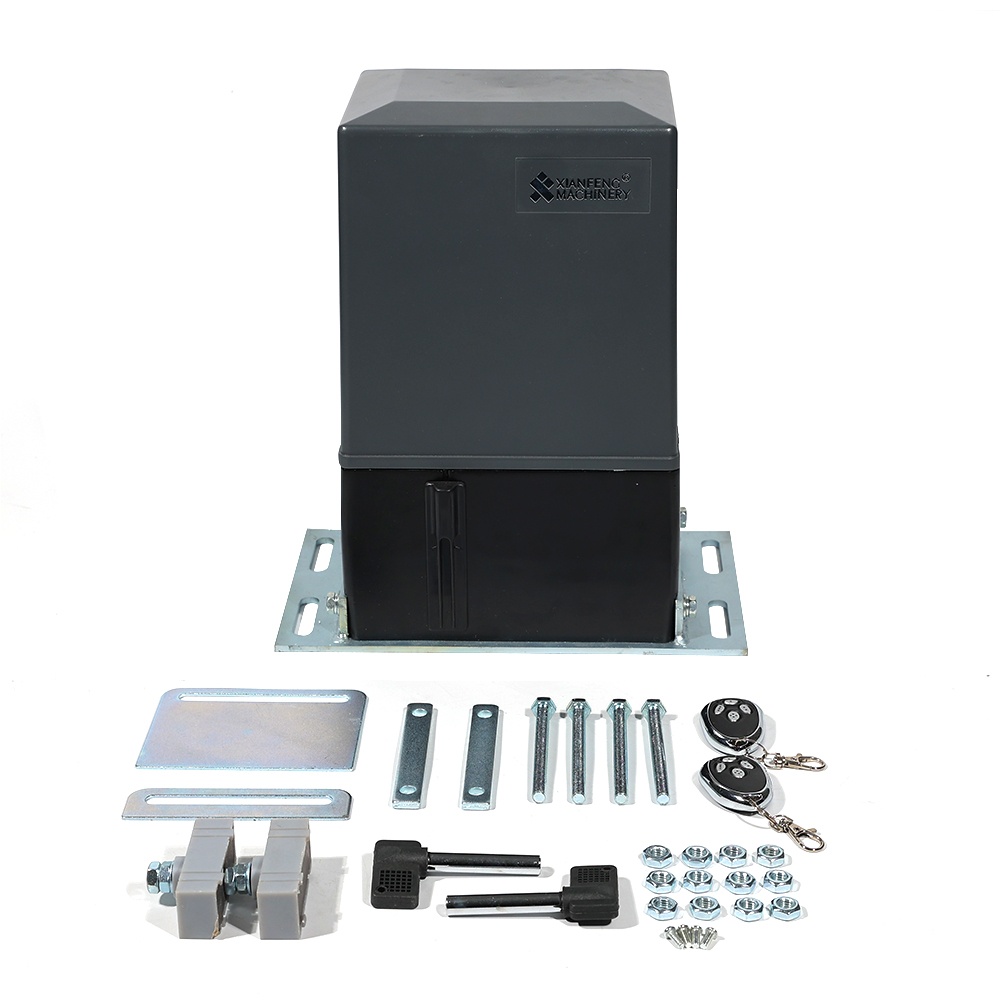

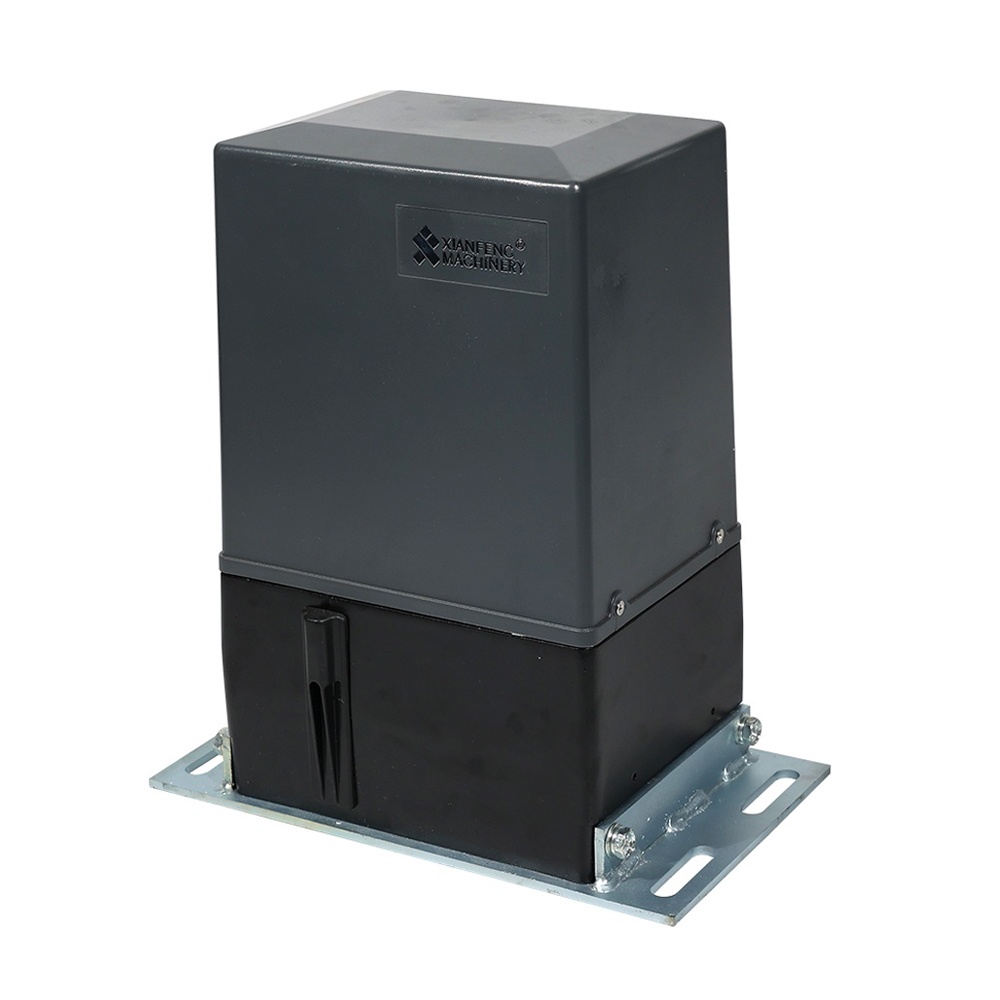

DKC3000S

Copper motor, with powerful starting torque, can drive 3000kgs gate.

Oil-immersed reducer, with low noise, good cooling performance, long service life.

Thermal protector inside, prevent the motor from burning due to the high temperature.

Manual release key in case of power failure.

Equipped with control box.

Technical data

Model	DKC3000S
Voltage	Three-phase AC 380V 50Hz
Motor speed	1400rpm
Motor power	750W
Output torque	100N.m
Adapted door weight	≤3000kg（19T）/≤2500kg（24T）
Opening speed	12m/min（19T）/14m/min（24T）
No-load noise	56dB

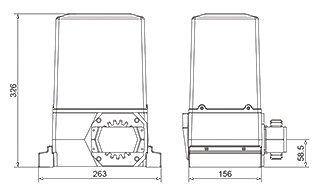

Center height of output shaft	62MM
Output teeth	19T/24T
Protection level	IP44
Ambient temperature	-20℃~+50℃ (-45℃ can be customized)
