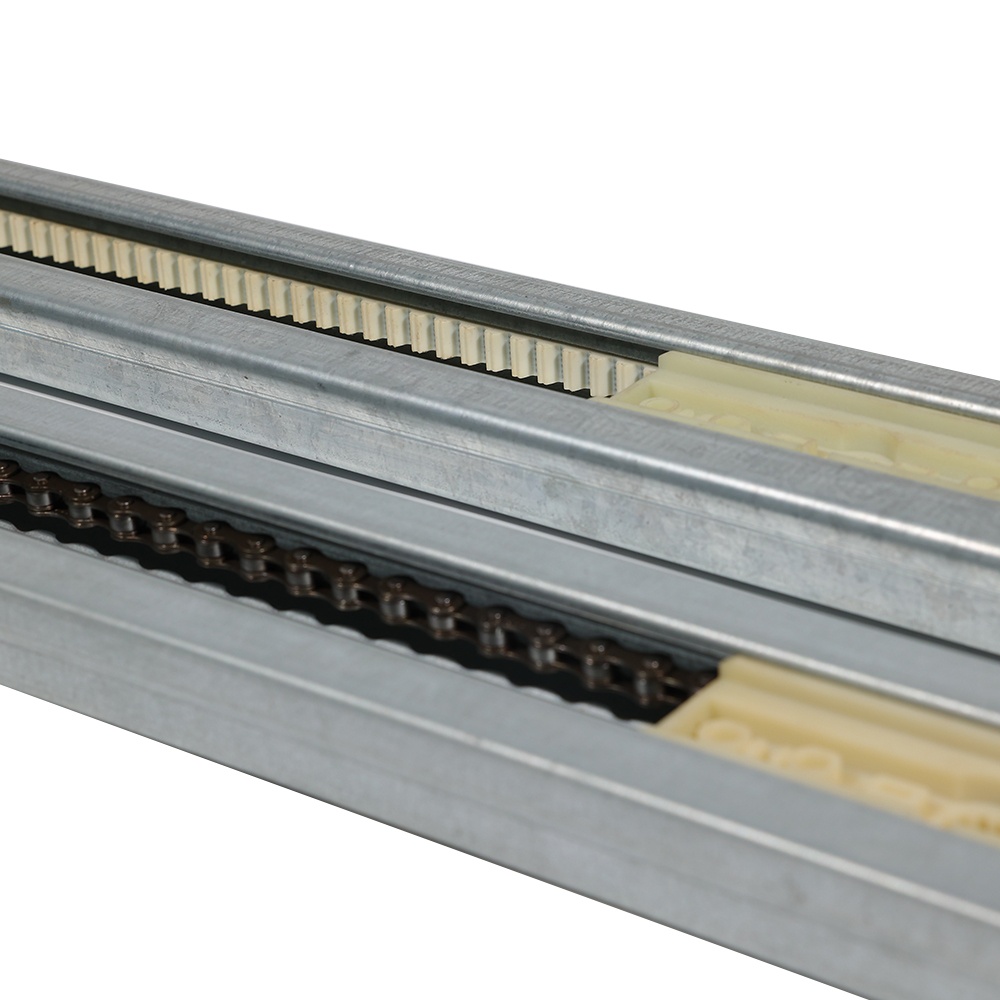

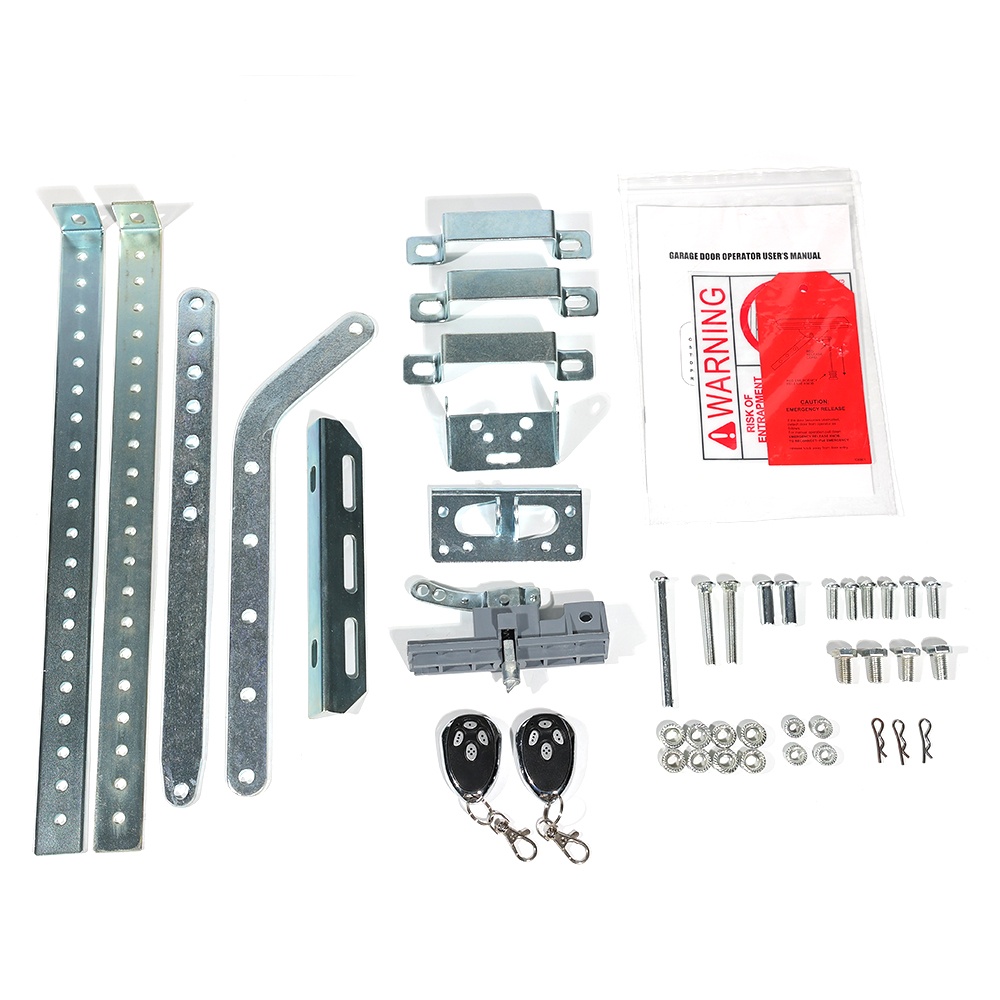

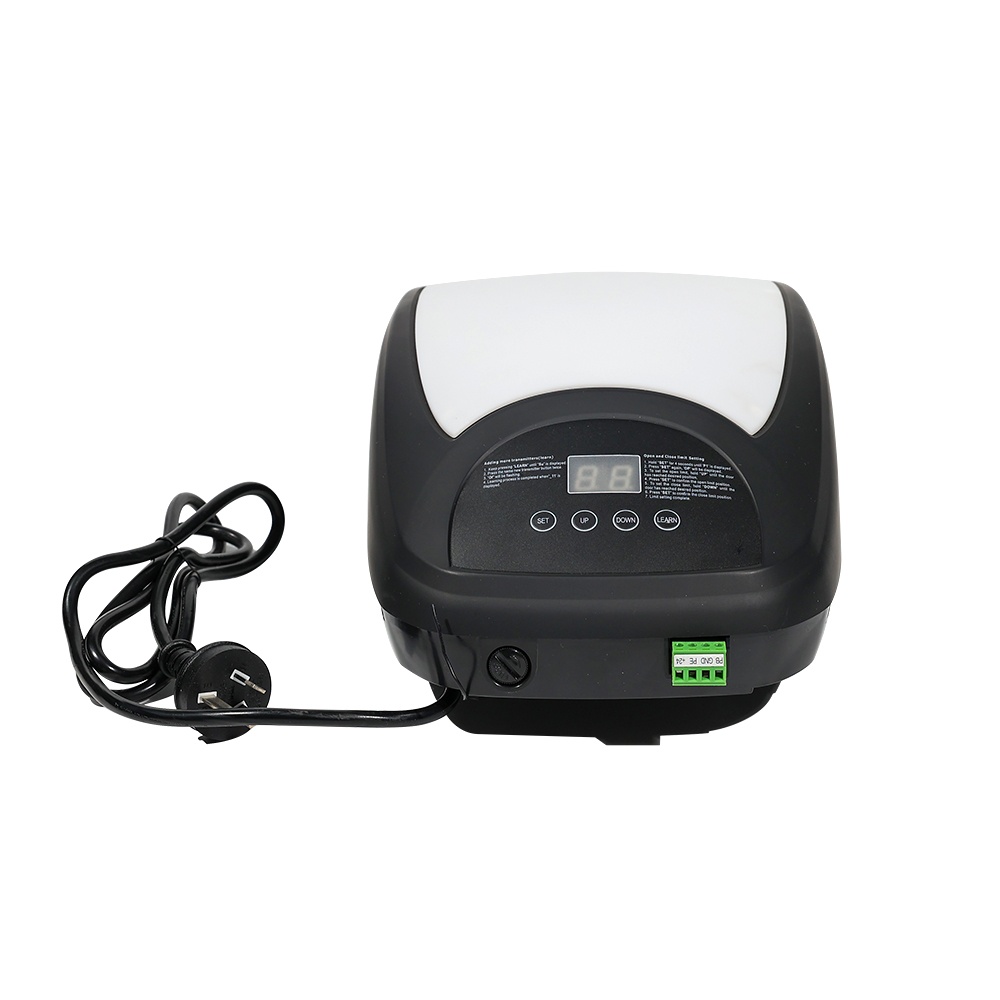

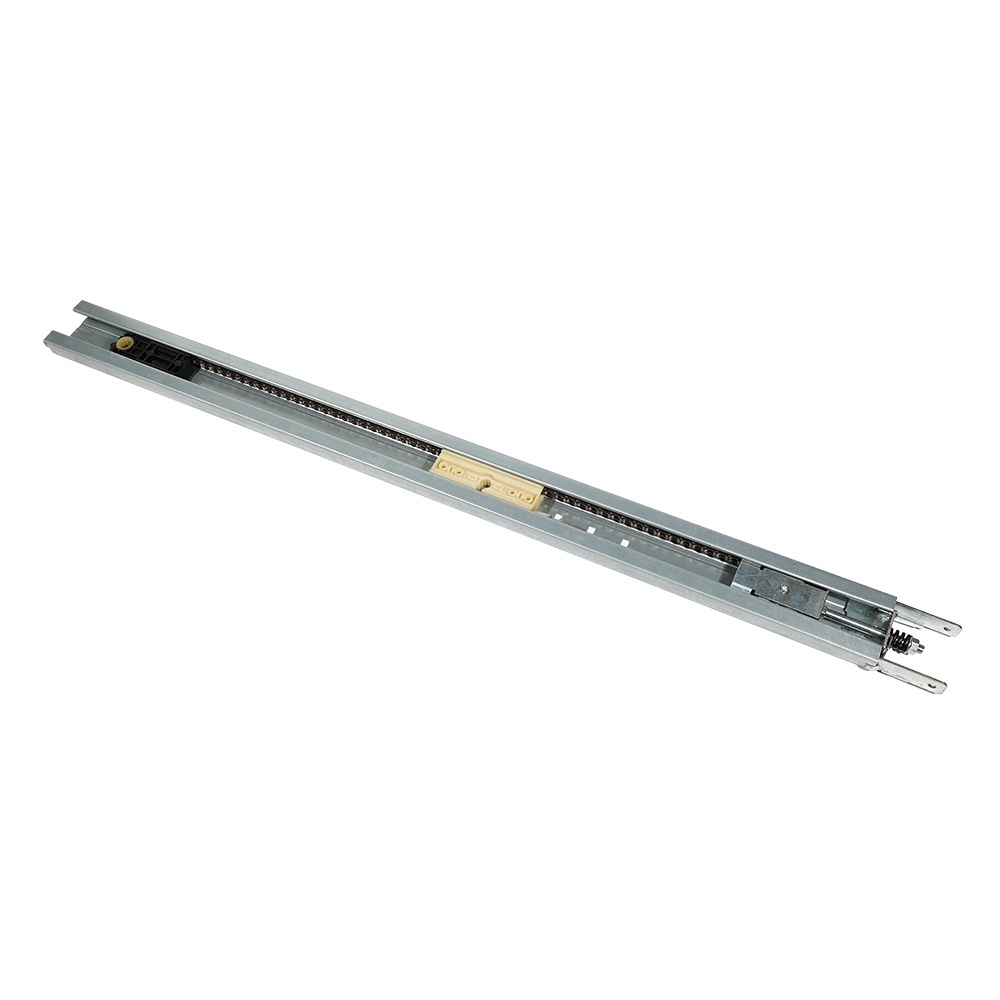

FBD SERIES
Features：
24V DC motor.
Backup battery (optional).
Soft start & soft stop.
Auto-close function.
Auto-reverse when obstruction.
Easy to release when power supply failure.
Technical data
| Model | FBD120 | FBD180 | FBD200 | FBD220 |
| Power supply | 220V or 110V | |||
| Motor power | 60W | 80W | 100W | 120W |
| Lift force | 600N | 800N | 1000N | 1200N |
| Max.door size | 10m2 | 12m2 | 14m2 | 16m2 |
| Opening speed | 5.77m/min | |||
| Remote control | Rolling code 433.92Mhz | |||
| Rail length (normal) | 3.3m | |||
